Spring Finger Contacts (SMT)

Spring finger contacts are used for grounding and dynamic connections on electronic assemblies.

These spring finger contacts (SMT) are designed to withstand tens of thousands of compression cycles. They are widely used for connections on automotive projects for example. These spring finger contacts are delivered in reel for automatic SMT assembly.

We provide compression rates and associated forces for each spring finger contact on request. Recommended compression is 20% to 40% of the overall contact height.

Spring finger contacts (SMT) can be standard (see our catalog below) or tailor-made.

Spring finger contacts (SMT), Key points :

  • Mechanical resistance of the spring contact >50,000 compression cycles
  • Excellent resistance to vibrating environments (automobile, aeronautics, military)
  • Automatic assembly (SMT) with reel packaging (7″ or 13″)
  • Nickel treatment (weldability) and gold flash (for conductivity and protection)
  • Surface resistance of a few milli-ohms.

Large catalog of standard spring finger contacts (SMT) available and possibility to make custom-made parts (dimensions, thickness, materials, overmolding, etc.).

Detailed mechanical report provided on request (dimensions, packaging, compression curves, etc.)

Prototypes and samples of spring finger contacts on request.





Learn more about spring finger contacts (SMT)

These spring finger contacts (SMT or bulk, standard or custom) provide a flexible connection for ground contact for various configurations.

The thermal treatment and the choice of the alloy ensure a high durability (thousands of cycles) with stable mechanic and conductive characteristics.

Especially used as: battery contact, antenna contact and on PCBs.

They can be assembled by pick and place (SMT process) or delivered on bulk for small quantities or prototyping.

Those spring contact are mainly used on Automotive and Industrial fields.

Our design department can analyze the mechanical design requirements before proposing any type of SMT metal contact in your application.

We provide all technical datas for a complete integration of the spring finger contacts on your application.

For example the recommended reflow temperature profile:

Contact our technical teams to obtain 3D and 2D plans for each reference.
We can also provide some spring finger contacts in bulk on request, to support you with your prototyping.

Catalog of spring finger contacts for automatic assembly (SMT)

Classified by increasing heights

MOQ = 1 reel

Samples and specific designs on demand

OG0820010

OG0820010

Width : 0,80 mm

Length: 2,00 mm

Height ​: 1,00 mm

Epaisseur : 0,08 mm

Packaging : 3000/7po

OG0820013

OG0820013

Width : 0,80 mm

Length : 2,00 mm

Height : 1,30 mm

Thickness : 0,08 mm

Packaging : 3000/7po

OG1725014

OG1725014

Width : 1,70 mm

Length : 2,50 mm

Height : 1,40 mm

Thickness : 0,08 mm

Packaging : 4000/13po

OG1527015

OG1725014

Width : 1,50 mm

Length: 2,70 mm

Height : 1,50 mm

Thickness : 0,08 mm

Packaging : 3500/13po

OG2032015

OG2032015

Width : 2,00 mm

Length : 3,20 mm

Height : 1,50 mm

Thickness : 0,08 mm

Packaging : 2500/13po

OG1228017

OG1228017

Width : 1,20 mm

Length : 2,80 mm

Height : 1,70 mm

Thickness : 0,08 mm

Packaging : 3800/7po

OG0846018

OG0846018

Width : 0,80 mm

Length : 4,60 mm

Height : 1,80 mm

Thickness : 0,08 mm

Packaging : 2000/7po

OG1527020

OG1527020

Width : 1,50 mm

Length : 2,70 mm

Height : 2,00 mm

Thickness : 0,08 mm

Packaging : 3500/13 “

OG2038020

OG2038020

Width : 2,00 mm

Length : 3,80 mm

Height : 2,00 mm

Thickness : 0,08 mm

Packaging : 3000/7po

OG2040021

OG2040021

Width : 2,00 mm

Length : 4,00 mm

Height : 2,10 mm

Thickness : 0,08 mm

Packaging : 3000/13po

OG2030025

OG2030025

Width : 2,00 mm

Length : 3,00 mm

Height : 2,50 mm

Thickness : 0,08 mm

Packaging : 5500/13po

OTG2030025

OTG2030025

Width : 2,00 mm

Length : 3,00 mm

Height : 2,50 mm

Thickness : 0,08 mm

Packaging : 5500/13 “

OG1835025

OG1835025

Width: 1,80 mm

Length : 3,50 mm

Height : 2,50 mm

Thickness : 0,08 mm

Packaging : 3000/13po

OG2028028

OG2028028

Width : 2,00 mm

Length : 2,88 mm

Height : 2,80 mm

Thickness : 0,08 mm

Packaging : 2500/13po

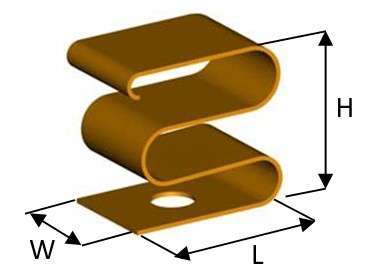

OG2030030

OG2030030

Width : 2,00 mm

Length : 3,00 mm

Height : 3,00 mm

Thickness : 0,08 mm

Packaging : 2500/13po

OG2030031

OG2030031

Width : 2,00 mm

Length : 3,00 mm

Height : 3,10 mm

Thickness : 0,08 mm

Packaging : 2500/13 “

OG2030031S

OG2030031S

Width : 2,00 mm

Length : 3,00 mm

Height : 3,10 mm

Thickness : 0,08 mm

Packaging : 2500/13po

OG1237032

OG1237032

Width : 1,20 mm

Length : 3,70 mm

Height : 3,20 mm

Thickness : 0,08 mm

Packaging : 2500/13po

OG2030035

OG2030035

Width : 2,00 mm

Length : 3,00 mm

Height : 3,50 mm

Thickness : 0,08 mm

Packaging : 2000/13po

OG2543035

OG2543035

Width : 2,50 mm

Length : 4,50 mm

Height : 3,50 mm

Thickness : 0,08 mm

Packaging : 2000/13po

OG2545035

OG2545035

Width : 2,50 mm

Length : 4,50 mm

Height : 3,50 mm

Thickness : 0,08 mm

Packaging : 2000/13po

OG2030036

OG2030036

Width : 2,00 mm

Length : 3,00 mm

Height : 3,60 mm

Thickness : 0,08 mm

Packaging : 2000/13po

OG2040037

OG2040037

Width : 2,00 mm

Length : 4,00 mm

Height : 3,70 mm

Thickness : 0,08 mm

Packaging : 2000/13po

OTG2530040

OTG2530040

Width : 2,50 mm

Length : 3,00 mm

Height : 4,00 mm

Thickness : 0,08 mm

Packaging : 2000/13po

OTG2535040

OTG2535040

Width : 2,50 mm

Length : 3,50 mm

Height : 4,00 mm

Thickness : 0,08 mm

Packaging : 2000/13po

OTG3050040

OTG2540041

Width : 3,00 mm

Length : 5,00 mm

Height : 4,00 mm

Thickness : 0,08 mm

Packaging : 2000/13po

OTG2540041

OTG2540041

Width : 2,50 mm

Length : 4,00 mm

Height : 4,10 mm

Thickness : 0,08 mm

Packaging : 2000/13po

OTG2035042

OTG2035042

Width : 2,00 mm

Length : 3,50 mm

Height : 4,20 mm

Thickness : 0,08 mm

Packaging : 2500/13po

OTG795454

OTG795454

Width : 2,00 mm

Length : 4,50 mm

Height : 4,50 mm

Thickness : 0,08 mm

Packaging : 2000/13po

OTG2548045

OTG2548045

Width : 2,50 mm

Length : 4,80 mm

Height : 4,50 mm

Thickness : 0,15 mm

Packaging : 1500/13po

OTG2045048

OTG2045048

Width : 2,00 mm

Length : 4,50 mm

Height : 4,80 mm

Thickness : 0,10 mm

Packaging : 1000/13po

OTG2545048

OTG2545048

Width : 2,50 mm

Length : 4,50 mm

Height : 4,80 mm

Thickness : 0,10 mm

Packaging : 1200/13po

OTG2540050

OTG2540050

Width : 2,50 mm

Length : 4,00 mm

Height : 5,00 mm

Epaisseur : 0,10 mm

Packaging : 1500/13po

OTG2058050

OTG2058050

Width : 2,00 mm

Length : 5,80 mm

Height : 5,00 mm

Thickness : 0,15 mm

Packaging : 1500/13po

OTG3040051

OTG3040051

Width : 3,00 mm

Length : 4,00 mm

Height : 5,10 mm

Thickness : 0,08 mm

Packaging : 1500/13po

OTG2040053

OTG2040053

Width : 2,00 mm

Length : 4,00 mm

Height : 5,30 mm

Thickness : 0,08 mm

Packaging : 1500/13po

OTG2038062

OTG2038062

Width : 2,00 mm

Length : 3,80 mm

Height : 6,20 mm

Thickness : 0,10 mm

Packaging : 1400/13po

OTG2570062

OTG2570062

Width : 2,50 mm

Length : 7,00 mm

Height : 6,20 mm

Thickness : 0,15 mm

Packaging : 1200/13po

OTG2045070

OTG2045070

Width : 2,00 mm

Length : 4,50 mm

Height : 7,00 mm

Thickness : 0,10 mm

Packaging : 1000/13po

OTG2548070

OTG2040053

Width : 2,50 mm

Length : 4,80 mm

Height : 7,00 mm

Thickness : 0,08 mm

Packaging : 1000/13po

OTG2570075

OTG2570075

Width : 2,50 mm

Length : 7,00 mm

Height : 7,50 mm

Thickness : 0,10 mm

Packaging : 500/13po

OTG2570090

OTG2570090

Width : 2,50 mm

Length : 7,00 mm

Height : 9,00 mm

Thickness : 0,10 mm

Packaging : 500/13po

OTG3060100

OTG3060100

Width : 3,00 mm

Length : 6,00 mm

Height : 10,00 mm

Thickness : 0,10 mm

Packaging : 500/13po

OTG2570100

OTG2590130

Width : 2,50 mm

Length : 7,00 mm

Height : 10,00 mm

Thickness : 0,15 mm

Packaging : 500/13po

OTG2590130

OTG2590130

Width : 2,50 mm

Length : 9,00 mm

Height : 13,00 mm

Thickness : 0,15 mm

Packaging : 300/13po
